DS G.653 Compatible FTTX Handheld Arc Splicing Welding Machine for Fiber Optic Fusion

Name: DS G653 Compatible FTTX Handheld Arc Splicing Welding Machine for Fiber Optic Fusion
Brand: FIBCONET
Price: 3 USD

Wholesale DS G.653 Compatible FTTX Handheld Arc Splicing Welding Machine for Fiber Optic Fusion from china suppliers

Model Number : X-950 Fusion Splicer

Type : Fiber fusion splicer

Place of Origin : NINGBO

Brand Name : FIBCONET

Use : Fiber Welding Machine manufacture

Warranty Time : 1 year

Network : None, wifi, 4g, 3G

Product name : Fiber Fusion Splicer

Alignment method : Clad to clad Fusion Splicer

Coating diameter : 250~400um Fusion Splicer

Applicable fiber : SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)

Typical splice loss : SM: 0.05dB;MM: 0.02dB;DS: 0.08dB;NZDS: 0.08dB

Operation mode : Manual/ Automatic fusion splicer

Battery capacity : 5200mAh Li-battery, 150 cycles splicing and heating

Power supply : Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Operating : Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s

Dimension/ Weight : 155mm (L)*144mm (W)*155mm (H) /2.3kg (including battery)

Packaging Details : 1 PC usion Splicer/carton

Supply Ability : 2000 Piece/Pieces per Month

MOQ : 5 pieces

Price : $3,850.00/pieces 5-999 pieces

Contact Now

FTTX RJ45 SM/MM/DS/NZDS Handheld Arc Splicing Welding Machine FTTH Touch Screen Fiber optic Splicing fusion Machine

DESCRIPTION

This fiber fusion splicer machine is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical.

DS G.653 Compatible FTTX Handheld Arc Splicing Welding Machine for Fiber Optic Fusion

Designed for Fusion Splicer

※ Applicable to 2-12 ribbon fiber splicing

※ Accurate alignment, world standard fusion loss
※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
※ Applicable to different types fibers (SM/MM/DS/NZDS)
※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images
※ Comply with CE/Rohs international standard

Fusion Splicer FEATURES

※ Applicable to 2-12 ribbon fiber splicing ※ Accurate alignment, world standard fusion loss ※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s ※ Applicable to different types fibers (SM/MM/DS/NZDS) ※ Ruggedized body, waterproof, anti-dust, anti-shock ※ Pluggable Li-battery, support separate charging ※ Easy to maintenance, easy to replace the electrodes ※ USB port for software upgrading, records exporting ※ Support 4000/100 groups fusion records/fusion images ※ Comply with CE/Rohs international standard

Alignment method	Clad to clad
Applicable fiber	SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)
Typical splice loss	SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB
Operation mode	Manual/ Automatic
Viewing display	Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Battery capacity	5200mAh Li-battery, 150 cycles splicing and heating
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Tension test	1.8～2.2N
Terminals	USB 2.0 port, for software upgrading, records exporting
Operating	Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s
Dimension/Weight	155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery)

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you!

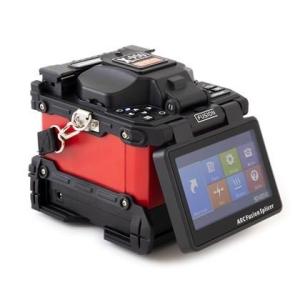

DS G.653 Compatible FTTX Handheld Arc Splicing Welding Machine for Fiber Optic Fusion Images
