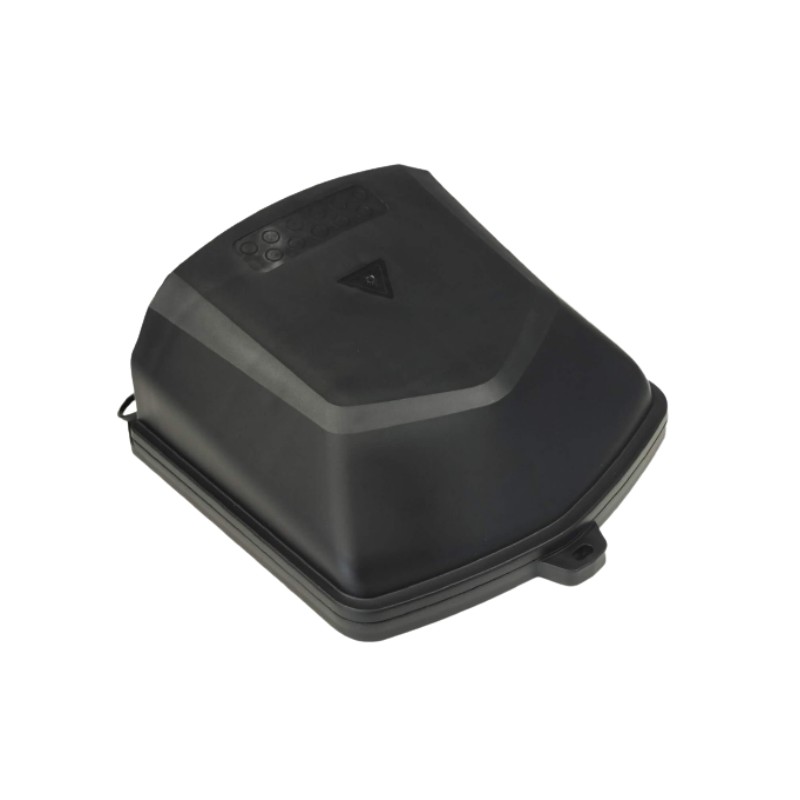

FTTH PLC Splitter Pre-Connector SC 1X9 in Outdoor Fiber Optic Terminal Box for B2B

Model Number : fiber optic terminal box

Type : fiber optic terminal box

Place of Origin : Zhejiang, China

Brand Name : OEM

Use : Fiber optic manufacture

Warranty Time : 1 year

Wiring Devices : ODF

Working temperature : -40℃~+85℃

Relative humidity : ≤85%(+30℃)

Atmospheric pressure : 70KPa~106Kpa

Insertion loss : ≤0.15dB

Cores : 1x9 fiber optic terminal box

Material : PP material fiber optic terminal box

keywords1 : fiber optic terminal box

keywords4 : outdoor fiber optic terminal box

MOQ : 500 pieces

Price : $5.00/pieces 500-1999 pieces

Contact Now

Products Description

Description

Refer to above FTTH pre-connectorized network application, FAT is a preconnectorized box which provide harden adaptor to connect with end user, lt will besealed by hot welding technology and never open after production. The engineercould open broadband service with simple plug and play pre-connectorized dropcable. FAT support two network application, the first is 1:8 equal splitting mode, one inputand 8pcs output. The second is 1:9 un-equal splitting mode, one input and 8pcsoutput plus extra one branch output for connect with next node.FAT box support aerial mounting, pole mounting and wall mounting installationmode..
Specification
FTTH PLC Splitter Pre-Connector SC 1X9 in Outdoor Fiber Optic Terminal Box for B2B

Installations
1. Wall-mounted installation

2. Pole-mounted installation Fix 1 set of the pole ring to the telecom pole


FEATURE
Robust environmental performance. withstand extreme in temperature andconditions

Technical-friendly features ;intuitive design for ease of use

Meet IP68 waterproof level

Used for 1:8 equal and 1:9 un-equal splitter application

Plug and play, easy operation to save TCO
FTTH PLC Splitter Pre-Connector SC 1X9 in Outdoor Fiber Optic Terminal Box for B2B
Working temperature
-40℃~+85℃
Relative humidity
≤85%(+30℃)
Atmospheric pressure
70KPa~106Kpa
Insertion loss
≤0.15dB
UPC return loss
≥50dB
APC return loss
≥55dB
Configuration Table
Model
Description
Size L*W*H (mm)
Max Capacity
Reinforced Adapter
Pre-connectorized distribution box
Splitter Box
203*195*85mm
PLC Splitter 1pcs 1x9 Splitter
10 pcs
