Black PE Fiber Optic Cable GYXFTC8Y 4/8/12 Core G652D Outdoor Single-Mode FTTH Cable

Model Number : Fiber Optical Cable GYXFTC8Y

Type : Figure 8 Fiber Optic Cable

Place of Origin : Zhejiang, China

Brand Name : oem

Number of Conductors : ≥ 10

Model NO. : Figure 8 Fiber Cable

Certification : RoHS, CE, ISO9001

Sheath Material : PE/PVC/LSZH

Fiber Account : 2-24cores

Installation Style : Aerial Fiber Optic Cable

Outer Sheath Material : Black PE Fiber Optic Cable

Armour Material : Corrugated Steel Tape

Production Capacity : 400, 000metres/Month

Fiber : G.652D

Cores : 4,6,8,12,16,24,36,48,72,96,144

MOQ : 100 kiloamperes

Price : $0.80/kiloamperes 100-999 kiloamperes

Contact Now

Black PE Fiber Optic Cable GYXFTC8Y 4/8/12 Core G652D Outdoor Single-Mode FTTH Cable

Products Description

Figure 8 Central Loose Tube Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound.

The tubes (and fillers) are stranded around FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

APPLICATIONS

· Distribution cable
· Indoor cabling, for FTTx
· Data center
· Multi cores pigtails and patchcords, upto 48 cores per cable

FEATURES

· Good mechanical and environmental characteristics.
· Flame retardant characteristics.
· Excellent mechanical characteristics.
· Soft, flexible, easy to installation.
· Meets international standards.

Fiber Specifications

Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
Condition			nm	1310/1550	1310/1550	1310/1550
Attenuation			dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion	1310nm	Ps/(nm*km)	≤18	≤18	≤18
Dispersion		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	>=1180,≤1330	>=1180,≤1330	>=1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	....	....
MFD	1310nm	um	9.2±0.4	9.0±0.4	9.8±0.4
MFD		1550nm	um	10.4±0.8	10.1±0.5	9.8±0.5

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance
payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very
competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our
contract!

6. How do you arrange the shipping?

Solution A: Fibconet take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish
the shipping.

7. How can you guarantee the delivery time?

1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical
test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

10. Why choose Fibconet Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you Features!

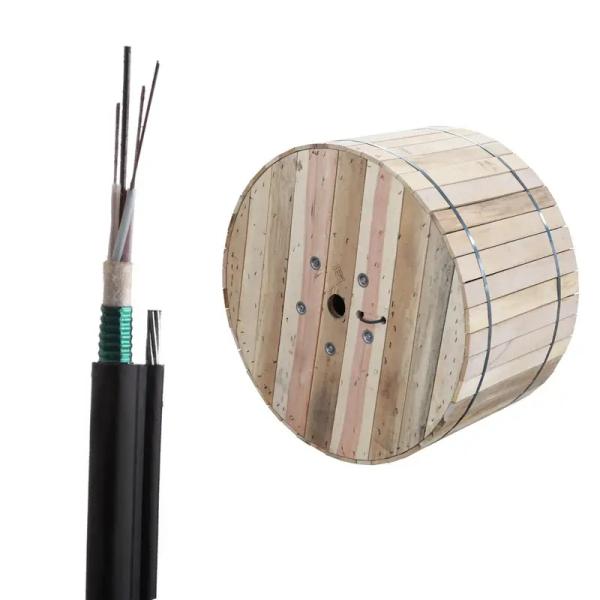

Black PE Fiber Optic Cable GYXFTC8Y 4/8/12 Core G652D Outdoor Single-Mode FTTH Cable Images
